Toyota CH-R Service Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

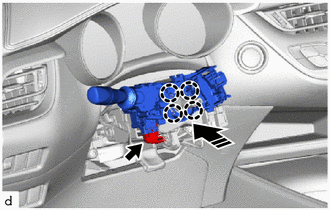

(a) Engage the claws to install the headlight dimmer switch assembly as shown in the illustration.
.png) |
Install in this Direction |
(b) Connect the connector.
2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
Click here
.gif)
3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Click here
