Toyota CH-R Service Manual: Disposal
DISPOSAL
PROCEDURE
1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY
CAUTION:
- Always use a cloth to prevent shards of metal flying about due to the release of pressurized gas.
- Always wear safety glasses.
HINT:
The gas is colorless, odorless and non-poisonous.
|

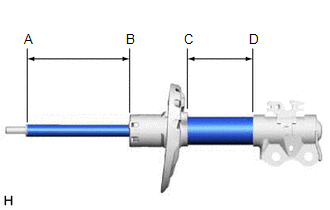

(a) Place the front shock absorber horizontally with the piston rod extended, and using a hacksaw, make a hole between (A) and (B), and between (C) and (D) shown in the illustration to discharge the gas inside. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE
1. INSTALL FRONT LOWER COIL ...
