DESCRIPTION
This DTC is stored when LIN communication between the power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU) stops for 10 seconds or more.
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
---|---|---|---|
B2322 |
Front Passenger Side Door ECU Communication Stop |
No communication between power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU) for 10 seconds or more. |
|

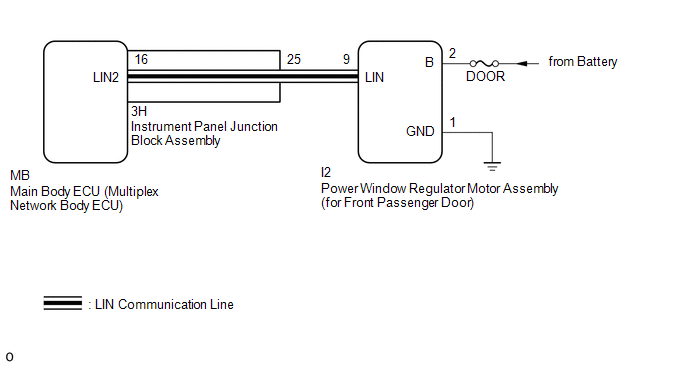

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
Click here
Click here
PROCEDURE
1. |
INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
(a) Remove the instrument panel junction block assembly.
Click here
*a |
Component without harness connected (Instrument Panel Junction Block Assembly) |
- |
- |
(b) Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
(c) Measure the resistance according to the value(s) in the table below.
HINT:
This inspection is to check the LIN communication line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).
Standard Resistance:
Tester Connection |
Condition |
Specified Condition |
---|---|---|
3H-25 - MB-16 (LIN2) |
Always |
Below 1 Ω |
NG | ![]() |
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
|
|
2. |
CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door)) |
(a) Disconnect the I2 power window regulator motor assembly (for front passenger door) connector.
(b) Measure the resistance according to the value(s) in the table below.
NOTICE:
Make sure that each ECU is in sleep mode before performing the inspection. To enter sleep mode, turn the ignition switch from ON to off and wait for 180 seconds or more without operating any switches.
Standard Resistance:
Tester Connection |
Switch Condition |
Specified Condition |
---|---|---|
3H-25 - I2-9 (LIN) |
Ignition switch off |
Below 1 Ω |
I2-9 (LIN) or 3H-25 - Body ground |
Ignition switch off |
10 kΩ or higher |
NG | ![]() |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
3. |
CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) - BATTERY, BODY GROUND) |
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection |
Condition |
Specified Condition |
---|---|---|
I2-2 (B) - I2-1 (GND) |
Always |
11 to 14 V |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection |
Condition |
Specified Condition |
---|---|---|
I2-1 (GND) - Body ground |
Always |
Below 1 Ω |
NG | ![]() |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
4. |
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) |
(a) Replace the power window regulator motor assembly (for front passenger door).
Click here
|
5. |
CHECK FOR DTC |
(a) Clear the DTCs.
Click here
(b) Recheck for DTCs.
Body Electrical > Main Body > Trouble CodesOK:
DTC B2322 is not output.
OK | ![]() |
END (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) WAS DEFECTIVE) |
NG | ![]() |
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
|
