Toyota CH-R Service Manual: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.
PROCEDURE
1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
NOTICE:
Do not touch the speaker cone.
|

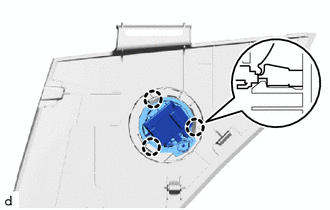

(a) Engage the claws to install the front No. 2 speaker assembly. |
|
.png)
2. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
Click here
.gif)
3. INSTALL FRONT PILLAR GARNISH ASSEMBLY
Click here
4. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
Click here
Inspection
INSPECTION
PROCEDURE
1. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY
(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
...
Noise Filter
...
