Toyota CH-R Service Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the instrument panel passenger airbag assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced|
Replacement Part or Procedure |
Necessary Procedures |
Effects/Inoperative when not performed |
Link |
|---|---|---|---|
|
Disconnect cable from negative battery terminal |
Memorize steering angle neutral point |
Lane departure alert system (w/ Steering Control) |
|
|
Pre-collision system |
|||
|
Initialize back door lock |
Power door lock control system |
|
PROCEDURE
1. PRECAUTION
CAUTION:
Be sure to read Precaution thoroughly before servicing.
Click here .gif)
.png)
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here
2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Click here
3. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
CAUTION:
When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.
.png) |
Deployment Side |
|

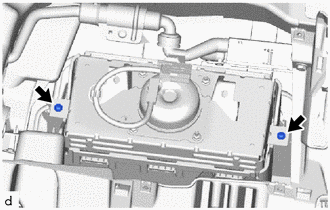

(a) Remove the 2 screws. |
|
|
(b) Disengage the hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly. NOTICE: Do not damage the deployment surface of the instrument panel passenger airbag assembly. |
|
.png)
4. REMOVE NO. 2 INSTRUMENT PANEL WIRE
(a) for Single Type:
|
(1) Disengage the clamp. |
|
(2) Using a screwdriver with its tip wrapped in protective tape, release the airbag connector lock.
(3) Disconnect the airbag connector to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
NOTICE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
(b) for Dual Type:
|
(1) Disengage the clamp. |
|
(2) Using a screwdriver with its tip wrapped in protective tape, release the 2 airbag connector locks.
(3) Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
NOTICE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
Installation
INSTALLATION
PROCEDURE
1. INSTALL NO. 2 INSTRUMENT PANEL WIRE
(a) for Single Type:
(1) Connect the airbag connector of the No. 2 instrument panel wire to
the instrument panel pass ...
Disposal
DISPOSAL
CAUTION / NOTICE / HINT
CAUTION:
Before performing pre-disposal deployment of any SRS part, review and closely
follow all applicable environmental and hazardous material regulations. Pre ...
