INSTALLATION

PROCEDURE

1. INSTALL REAR CONSOLE BOX ASSEMBLY

(a) Engage the guides to install the rear console box assembly as shown in the illustration.

Install in this Direction

(b) Connect the connector.

(c) Install the 4 bolts.

(d) Install the 4 screws.

2. INSTALL CONSOLE BOX CARPET

(a) Install the console box carpet.

3. INSTALL NO. 2 CONSOLE BOX CUP HOLDER

(a) w/ Illumination:

(1) Connect the connector.

(b) Engage the claws to install the No. 2 console box cup holder as shown in the illustration.

Install in this Direction

4. INSTALL CONSOLE BOX CUP HOLDER

(a) w/ Illumination:

(1) Connect the connector.

(b) Engage the claws to install the console box cup holder as shown in the illustration.

Install in this Direction

5. INSTALL CONSOLE UPPER PANEL SUB-ASSEMBLY

(a) Connect each connector.

(b) Engage the clips to install the console upper panel sub-assembly as shown in the illustration.

Install in this Direction

6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

7. INSTALL NO. 2 FRONT CONSOLE BOX INSERT

(a) Engage the guide and clips to install the No. 2 front console box insert as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

8. INSTALL CONSOLE BOX INSERT

(a) Engage the guide and clips to install the console box insert as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

9. INSTALL INSTRUMENT PANEL BOX ASSEMBLY

(a) w/ Stereo Jack Adapter:

(1) Connect the connector.

(b) Engage the claw and clips to install the instrument panel box assembly as shown in the illustration.

Install in this Direction

10. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL

(a) Engage the claws to connect the cooler thermistor.

(b) Engage the clips to install the instrument panel lower center finish panel as shown in the illustration.

Install in this Direction

11. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

(a) Engage the clips to install the instrument cluster finish panel garnish assembly as shown in the illustration.

Install in this Direction

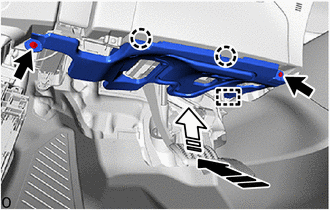

12. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

(a) Engage the guide and claws to install the No. 1 instrument panel under cover sub-assembly as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

(b) Install the 2 screws.

13. INSTALL COWL SIDE TRIM BOARD LH

(a) Engage the clips to install the cowl side trim board LH as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

(b) Install the clip.

14. INSTALL FRONT DOOR SCUFF PLATE LH

(a) Engage the claws and guides to install the front door scuff plate LH as shown in the illustration.

Install in this Direction
