Toyota CH-R Service Manual: Components
COMPONENTS

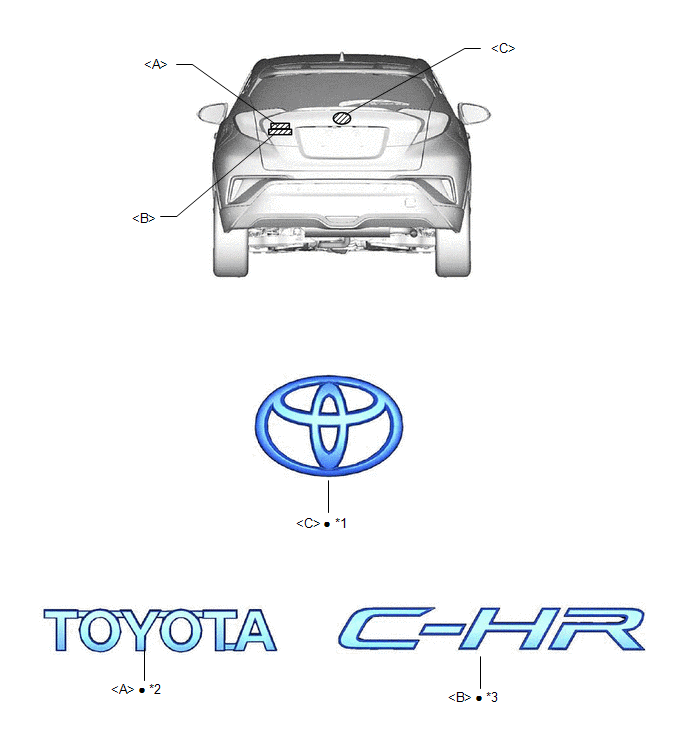

ILLUSTRATION
|
*1 |
NO. 1 BACK DOOR EMBLEM |
*2 |
NO. 1 BACK DOOR NAME PLATE |
|
*3 |
NO. 2 BACK DOOR NAME PLATE |
- |
- |
|
● |
Non-reusable part |
- |
- |
Name Plate
...
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
When removing the name plates, heat the vehicle body, back door outside garnish
and name plates using a heat light.
Heating Temperature
