Toyota CH-R Owners Manual: Air conditioning filter

The air conditioning filter must be changed regularly to maintain air conditioning efficiency.

Removal method

1. Turn the engine switch off.

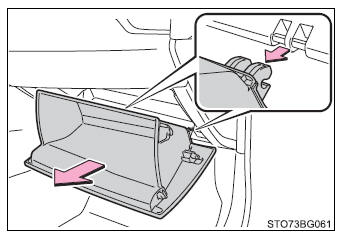

2. Open the glove box. Slide off the damper.

Toyota CH-R. Do-it-yourself maintenance

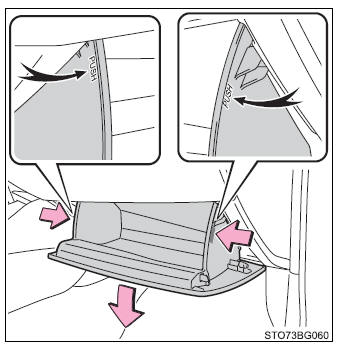

3. Push in each side of the glove box to disconnect the claws, and then slowly and fully open the glove box while supporting it.

Toyota CH-R. Do-it-yourself maintenance

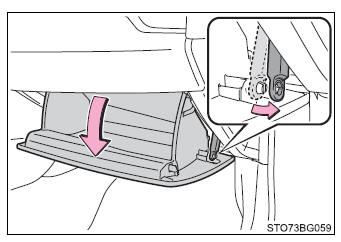

4. With the glove box fully open, slightly lift up the glove box and pull toward the seat to detach the bottom of the glove box.

Do not use excessive force if the glove box does not detach when lightly pulled. Instead, pull toward the seat while slightly adjusting the height of the glove box.

Toyota CH-R. Do-it-yourself maintenance

Type A

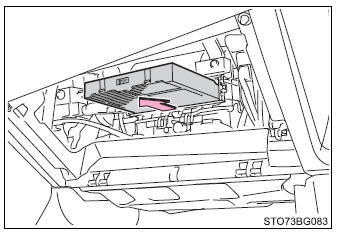

5. Remove the filter cover.

Toyota CH-R. Do-it-yourself maintenance

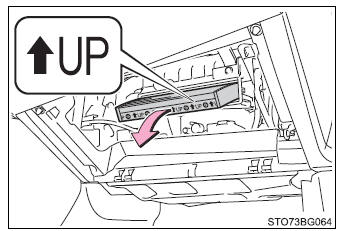

6. Remove the air conditioning filter and replace it with a new one.

The "UP" marks shown on the filter should be pointing up.

Toyota CH-R. Do-it-yourself maintenance

7. When installing, reverse the steps listed.

Type B

5. Remove the filter cover.

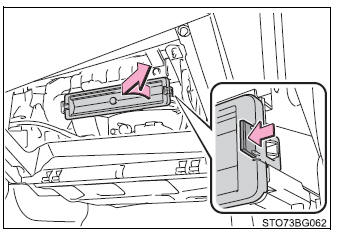

  1. Unlock the filter cover.

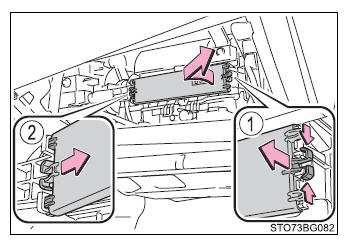

  2. Move the filter cover in the direction of the arrow, and then pull it out of the claws.

Toyota CH-R. Do-it-yourself maintenance

6. Remove the filter case.

Toyota CH-R. Do-it-yourself maintenance

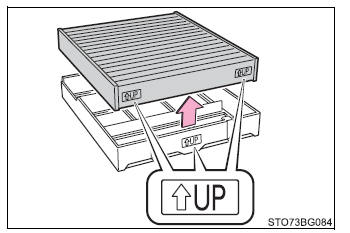

7. Remove the air conditioning filter from the filter case and replace it with a new one.

The "UP" marks shown on the filter should be pointing up.

Toyota CH-R. Do-it-yourself maintenance

8. When installing, reverse the steps listed.

■Checking interval Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the "Schedule maintenance guide" or "Owner's Manual Supplement".)

■If air flow from the vents decreases dramatically The filter may be clogged. Check the filter and replace if necessary.

NOTICE

■When using the air conditioning system Make sure that a filter is always installed.

Using the air conditioning system without a filter may cause damage to the system.

■When removing the glove box Always follow the specified procedure to remove the glove box. If the glove box is removed without following the specified procedure, the hinge of the glove box may become damaged.

■To prevent damage to the filter cover When moving the filter cover in the direction of arrow to release the fitting, pay attention not to apply excessive force to the claws. Otherwise, the claws may be damaged.Toyota CH-R. Do-it-yourself maintenance
