COMPONENTS

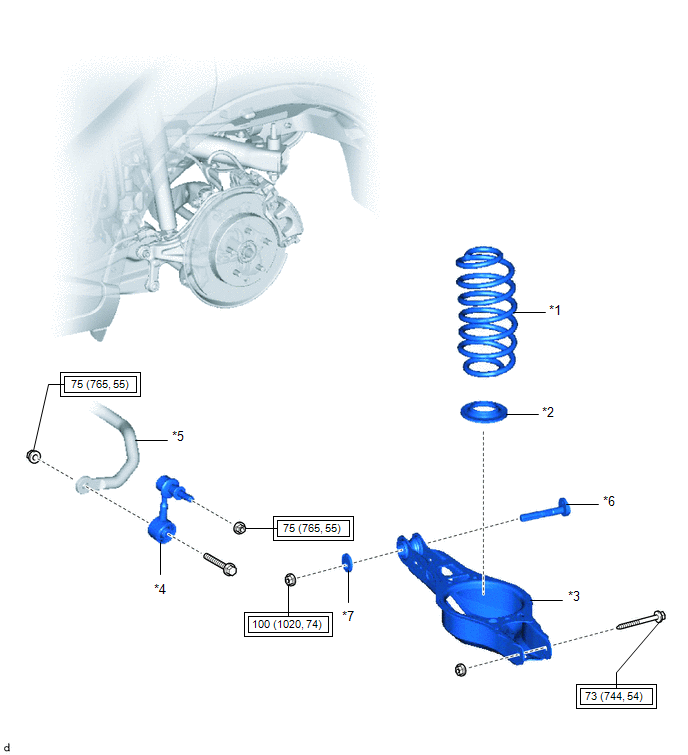

ILLUSTRATION
*1 |
REAR COIL SPRING |
*2 |
REAR LOWER COIL SPRING INSULATOR |
*3 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY |
*4 |
REAR STABILIZER LINK ASSEMBLY |
*5 |
REAR STABILIZER BAR |
*6 |
REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
*7 |
NO. 2 CAMBER ADJUST CAM |
- |
- |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
- |
- |
ILLUSTRATION
*1 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY |
- |
- |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
- |
- |
Toyota CH-R Service Manual > Stop Light Switch: Installation
INSTALLATION
PROCEDURE
1. INSTALL STOP LIGHT SWITCH ASSEMBLY
(a) Insert the stop light switch assembly until the threaded sleeve hits
the pedal.
NOTICE:
When inserting the stop light switch assembly, support the pedal from
behind so that the pedal is not pushed in.
...
Toyota CH-R Service Manual > Can Communication System: Check Bus 5 Line for Short to GND
DESCRIPTION
There may be a short circuit between one of the CAN bus lines and GND when there
is no resistance between terminal 15 (CA5H) of the central gateway ECU (network
gateway ECU) and terminal 4 (CG) of the DLC3, or terminal 16 (CA5L) of the central
gateway ECU (network gateway ECU) and ...
