Toyota CH-R Service Manual: Components
COMPONENTS

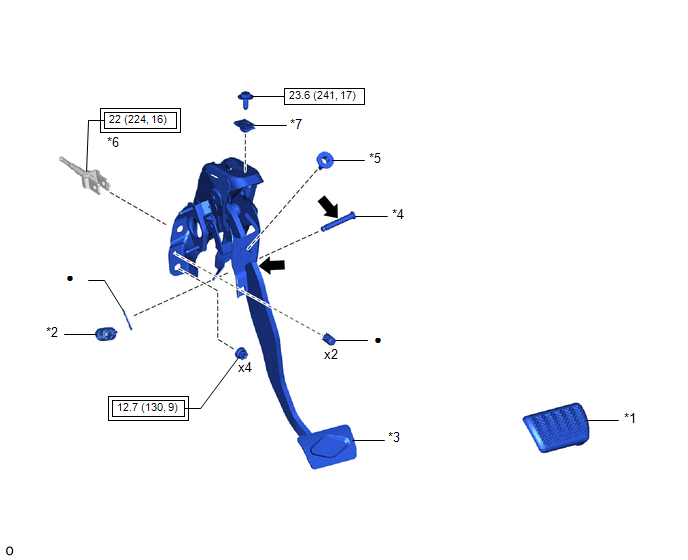

ILLUSTRATION
|
*1 |
BRAKE PEDAL PAD |
*2 |
BRAKE PEDAL RETURN SPRING |
|
*3 |
BRAKE PEDAL SUPPORT ASSEMBLY |
*4 |
PUSH ROD PIN |
|
*5 |
STOP LIGHT SWITCH MOUNTING ADJUSTER |
*6 |
CLEVIS LOCK NUT |
|
*7 |
NUT |
- |
- |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
|
● |
Non-reusable part |
.png) |
Lithium soap base glycol grease |
